Description:

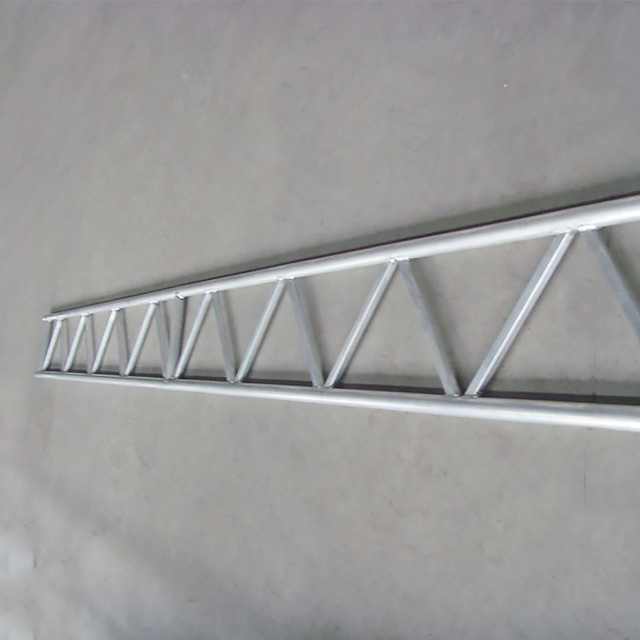

● Constructed out of 48.3mm diameter by 4.0mm wall thickness top bottom and vertical tubes,in 6082-T6 aluminum.

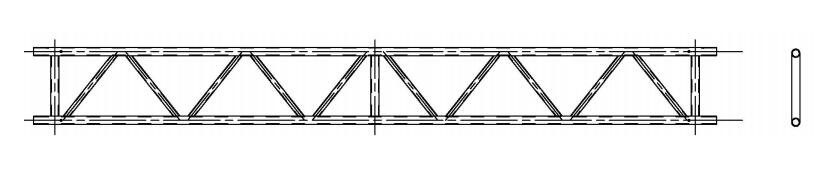

● Beam lengths are up to 8m with a 1m additional length and sections can be connected together with spigots in pairs using two bolts.

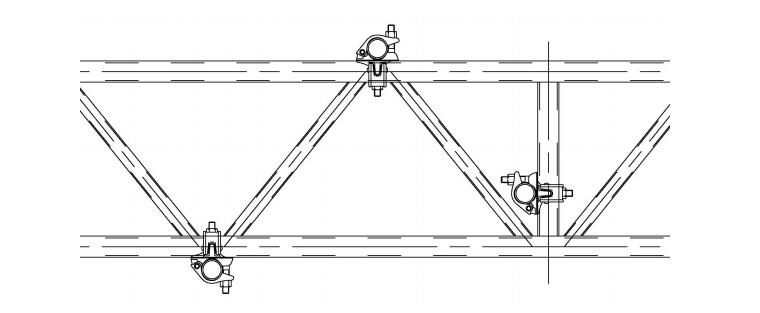

● The spacing of the pairs of diagonals between the vertical members is set out to allow for the location of couplers to the top and bottom chords apart from the interface of a diagonal to a vertical member.At these locations the connector should be placed to the vertical member only and as close to the top or bottom chord as possible.
Parameter:
| CODE NUMBER | DESCRIPTION | UNIT WEIGHT(KG) | SURFACE TREATMENT |
| GAB-8000 | 8M Alloy Beam 450mm | 32.34 | 6082-T6 aluminum |
| GAB-6000 | 6M Alloy Beam 450mm | 24.20 | |
| GAB-5000 | 5M Alloy Beam 450mm | 20.50 | |
| GAB-4000 | 4M Alloy Beam 450mm | 16.25 | |
| GAB-3000 | 3M Alloy Beam 450mm | 12.50 |
Customized materials and lengths are available according to construction scaffolding design.
