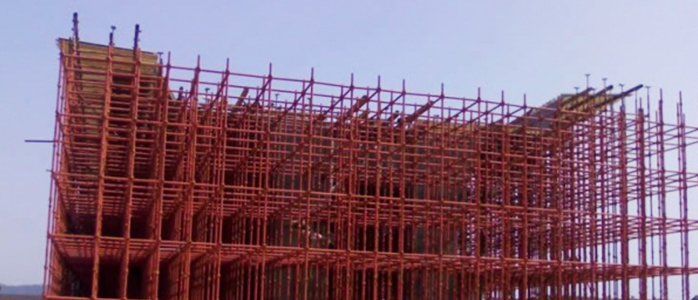

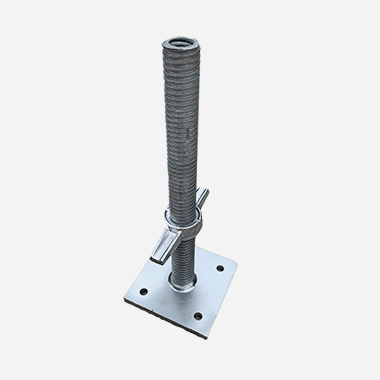

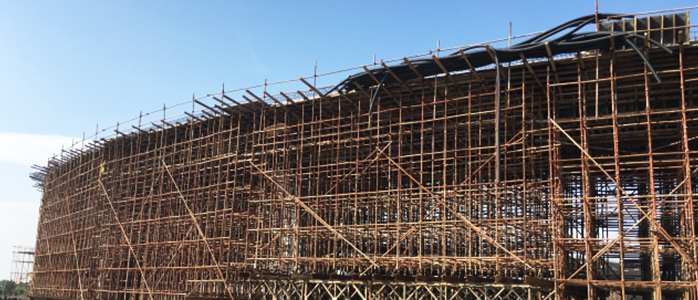

According to the specific construction requirements, it can form single row and double row scaffolds, support frames, support columns, material lifting frames and other multi-functional construction equipment with a modulus of 0.6m and a variety of frame sizes and loads, and can make curve layout. The scaffold can be used with adjustable base jack, adjustable U jack, double adjustable early disassembly, cantilever beam, cantilever frame and other accessories, and can be used with all kinds of steel pipe scaffolds to realize all kinds of versatility. First, it can be erected on any uneven slope and stepped foundation; Second, it can support the stepped template and realize the early disassembly of the template; Third, it can realize the early removal of some support frames, set up access roads, cornices and flying wings; Fourth, it can cooperate with the erection of climbing frame, movable workbench and outer bent to realize the support function of various functions; Fifth, it can be used as a storage shelf for setting up various stages, advertising engineering supports, etc. The vertical pole has the function of arbitrarily lengthening according to the 600mm module, and also has the function of inverted butt joint, which provides convenient conditions for the use of special height and size. The wheel ringlock multifunctional steel pipe scaffold also provides technical support for the use of large standardized formwork and the hanging, installation and fixation of new formwork.

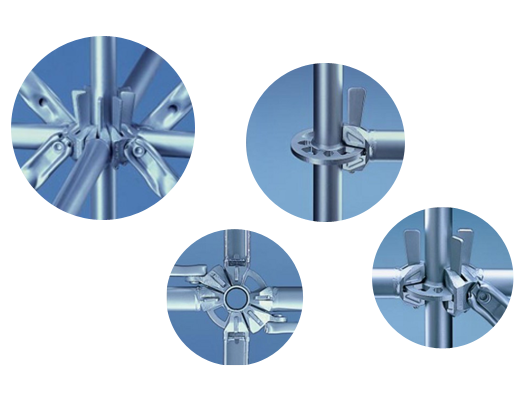

Independent wedges are used to insert self-locking mechanism. Due to the interlocking and gravity, the ledger ends cannot come out even if the bolt is not knocked tightly. The plug-in has a self-locking function, which can be locked or removed by pressing the pin. In addition, the contact surface between the fastener and the pillar is large, so as to improve the bending strength of the steel pipe and ensure that the pillar will not skew when the two are combined. The vertical crossing accuracy of the axis line of the standard and the axis line of the ledger of the ringlock multifunctional steel scaffold is high and the stress property is reasonable. Therefore, it has large bearing capacity, strong stiffness and strong stability. Each standard is allowed to bear 3-4 tons. The number of diagonal brace is much less than that of traditional scaffolds.

The axial force transmission of the vertical pole makes the scaffold have high structural strength and good overall stability in three-dimensional space. The rosetter has reliable axial shear resistance, and the axes of various rods intersect at one point. The number of connecting ledgers is twice as many as that of the cuplock joint part, and the overall stability strength is increased by 20% compared with the cuplock scaffold.

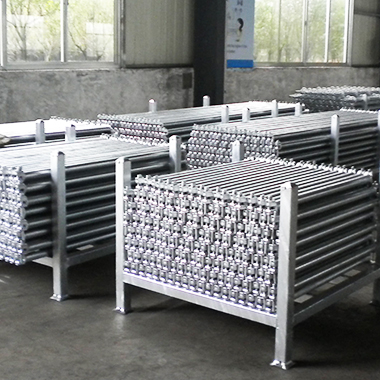

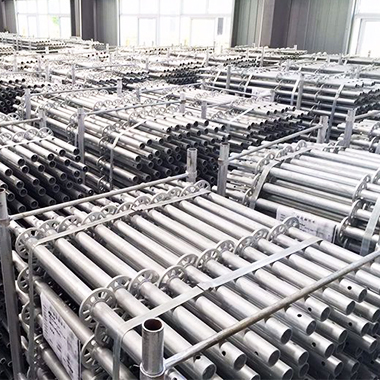

The component series is standardized, which is convenient for transportation and management. No scattered and easily lost components, low loss and less investment in the later stage.

The erection of the support rod-type cantilever scaffold needs to control the use load, and the erection must be firm. When erecting, the inner shelf should be erected first, so that the cross bar extends out of the wall, and then the diagonal bar is supported and the outgoing cross bar is firmly connected, and then the cantilevered part is erected, and the scaffolding board is laid. A safety net is set up below to ensure safety.
