Description:

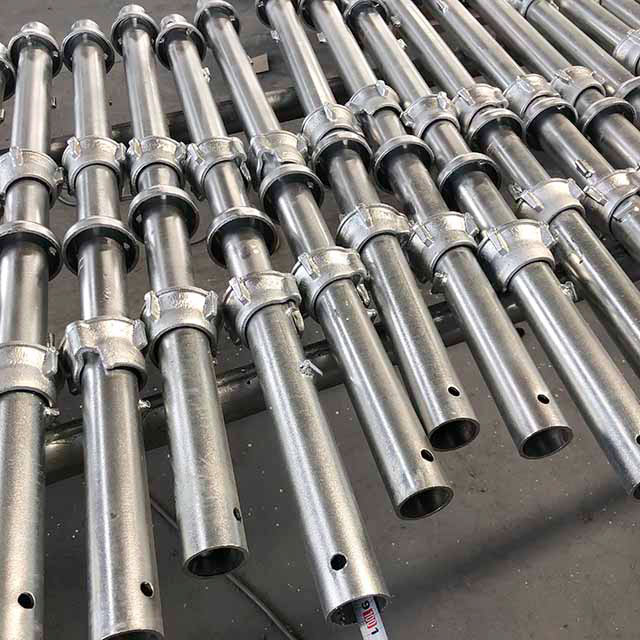

● Top Cup and Bottom Cup is Lock Connection between Cuplock Ledgers.
●The locking device is formed by two cups, a fixed bottom cup and a sliding upper cup,which allows up to 4 horizontal components to be connected with a vertical member in once single action without the use of nuts, bolts or wedges.

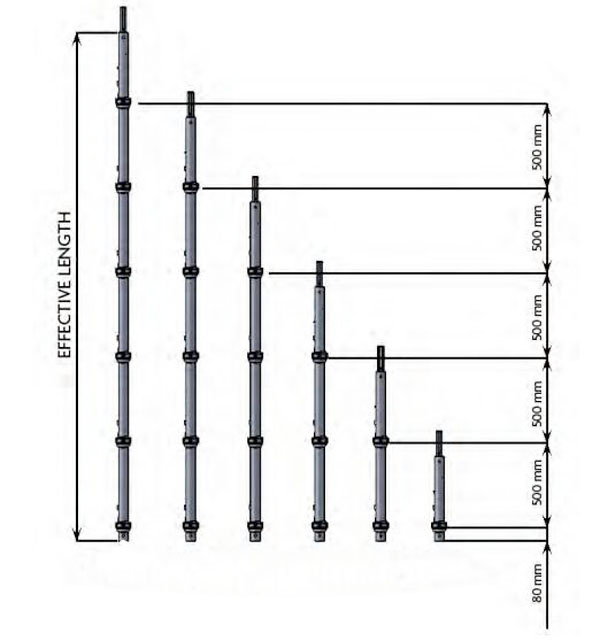

● A 150mm spigot at the top of the standard to allow the vertical connection of further standards.
Parameter:
| CODE NUMBER | DESCRIPTION | UNIT WEIGHT(KG) | SURFACE TREATMENT |
| GCS-3000 | CUPLOCK SCAFFODLING STANDARD /VERTICAL 48.3*3.2*3000MM | 16.50 | PAINTED/HOT DIP GALVNIZED |
| GCS-2500 | CUPLOCK SCAFFODLING STANDARD /VERTICAL 48.3*3.2*2500MM | 14.00 | |
| GCS-2000 | CUPLOCK SCAFFODLING STANDARD /VERTICAL 48.3*3.2*2000MM | 11.55 | |
| GCS-1500 | CUPLOCK SCAFFODLING STANDARD /VERTICAL 48.3*3.2*1500MM | 8.50 | |
| GCS-1000 | CUPLOCK SCAFFODLING STANDARD /VERTICAL 48.3*3.2*1000MM | 6.23 | |
| GCS-0500 | CUPLOCK SCAFFODLING STANDARD /VERTICAL 48.3*3.2*0500MM | 3.50 |
Customized materials and lengths are available according to construction scaffolding design.
