Description:

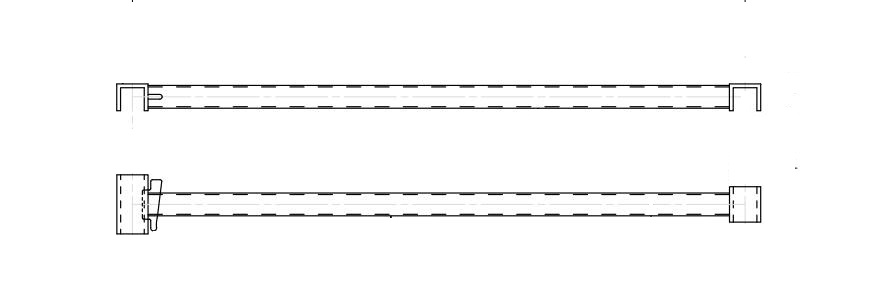

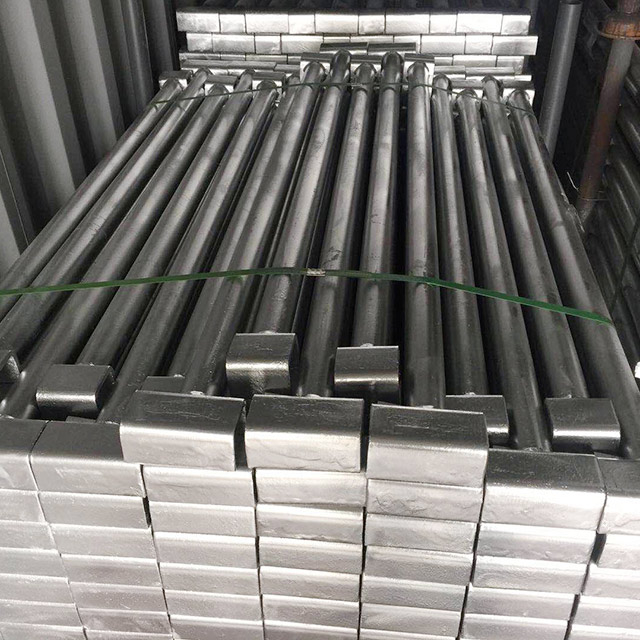

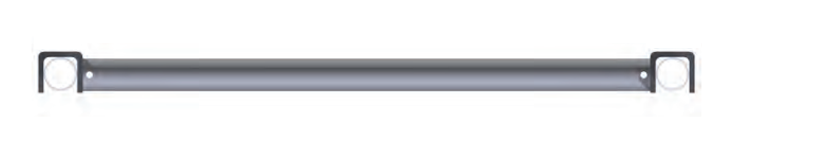

● These Units are designed to provide intermediate support for standard scaffold boards between the inner and outer ledgers.
● The jaw section at the each end is turned downwards to prevent dislocation.
● One end is provided with an integral locking device to prevent horizontal movement.
Parameter:
| CODE NUMBER | DESCRIPTION | UNIT WEIGHT(KG) | SURFACE TREATMENT |
| GCI-0900 | 0.9m Cuplock Scaffolding Intermediate Transoms | 5.45 | PAINTED/HOT DIP GALVNIZED |
| GCI-1300 | 1.3m Cuplock Scaffolding Intermediate Transoms | 6.50 | |
| GCI-1800 | 1.8m Cuplock Scaffolding Intermediate Transoms | 8.21 | |
| GCI-2500 | 2.5m Cuplock Scaffolding Intermediate Transoms | 17.50 |
Customized materials and lengths are available according to construction scaffolding design.
