Description:

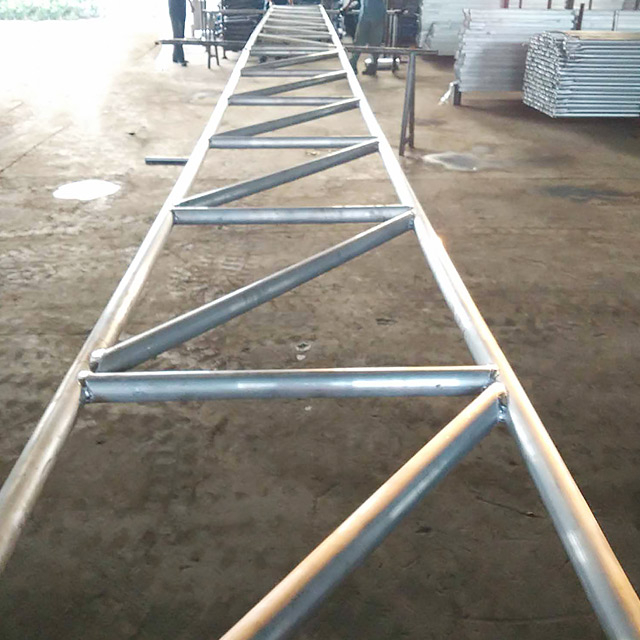

● Constructed out of 48.3mm diameter by 4.0mm wall thickness in 6082-T6 aluminum tubes.

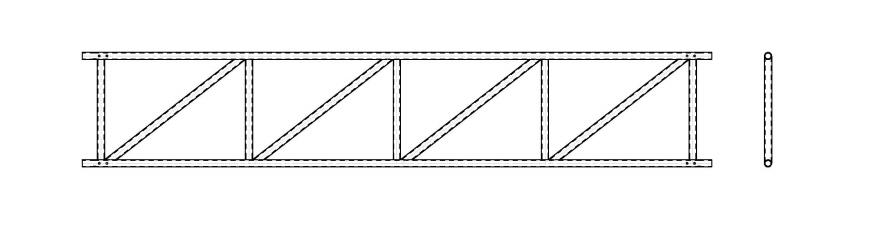

● Beam lengths are generally in 1m increments up to 7m and sections can be connected together using spigot connectors in pairs with two bolts.

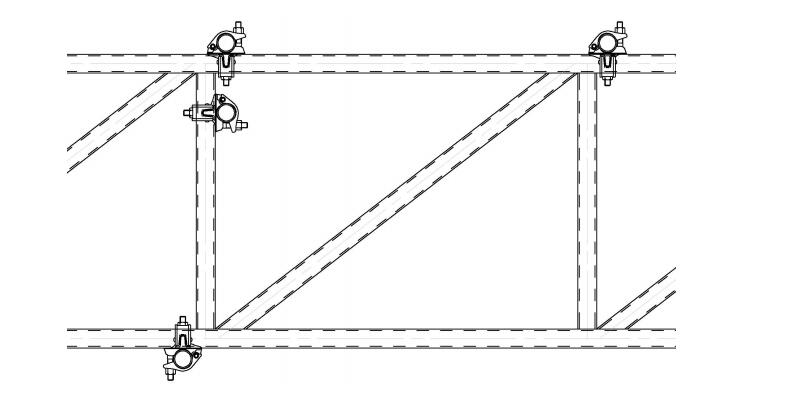

● The use of standard tube dimensions to the elements allows for the connection of couplers to the top,bottom or vertical members using EN74 couplers . All couplers should be located as close as possible to the node to minimize any secondary effects.
Parameter:
| CODE NUMBER | DESCRIPTION | UNIT WEIGHT(KG) | SURFACE TREATMENT |
| GAB-7000 | ALUMINUM BEAM 7M-750MM | 42.50 | 6082-T6 aluminum |
| GAB-6000 | ALUMINUM BEAM 6M-750MM | 24.20 | |
| GAB-5000 | ALUMINUM BEAM 5M-750MM | 20.50 | |
| GAB-4000 | ALUMINUM BEAM 4M-750MM | 24.30 | |
| GAB-3000 | ALUMINUM BEAM 3M-750MM | 18.50 |
Customized materials and lengths are available according to construction scaffolding design.
