Description:

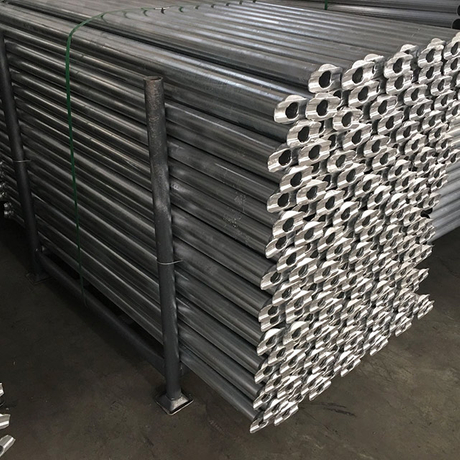

● Ledgers are horizontal members of Cup lock System Scaffold. It is made from Scaffold Tube 48.3mm(Outer Diameter).
● Forged blade ends on ledgers make assembly quick and simple
● The ledgers locate in the bottom cups of the standards.
Parameter:
| CODE NUMBER | DESCRIPTION | UNIT WEIGHT(KG) | SURFACE TREATMENT |
| GCL-3000 | CUPLOCK SCAFFOLDING LEDGERS /HORIZONTALS 48.3*3.2*3000MM | 11.50 | PAINTED/HOT DIP GALVNIZED |
| GCL-2500 | CUPLOCK SCAFFOLDING LEDGERS /HORIZONTALS 48.3*3.2*2500MM | 9.62 | |
| GCL-1800 | CUPLOCK SCAFFOLDING LEDGERS /HORIZONTALS 48.3*3.2*1800MM | 7.00 | |
| GCL-1600 | CUPLOCK SCAFFOLDING LEDGERS /HORIZONTALS 48.3*3.2*1600MM | 6.00 | |
| GCL-1300 | CUPLOCK SCAFFOLDING LEDGERS /HORIZONTALS 48.3*3.2*1300MM | 5.14 | |
| GCL-1200 | CUPLOCK SCAFFOLDING LEDGERS /HORIZONTALS 48.3*3.2*1200MM | 4.5 | |
| GCL-900 | CUPLOCK SCAFFOLDING LEDGERS /HORIZONTALS 48.3*3.2*900MM | 3.5 | |
| GCL-600 | CUPLOCK SCAFFOLDING LEDGERS /HORIZONTALS 48.3*3.2*600MM | 2.6 |
Customized materials and lengths are available according to construction scaffolding design.
